EEC Electric Sports Cart 48v 4 Seater With DoT Certification For
Street
Specification of Electric Utility Vehicle
Mechanical
5kW brushless AC motor with LiFePO4 72v 62Ah battery or
3kW brushless AC motor with Lead acid 72V 100Ah battery
4-wheel antilock, 4-wheel disc brakes
Rear wheel drive

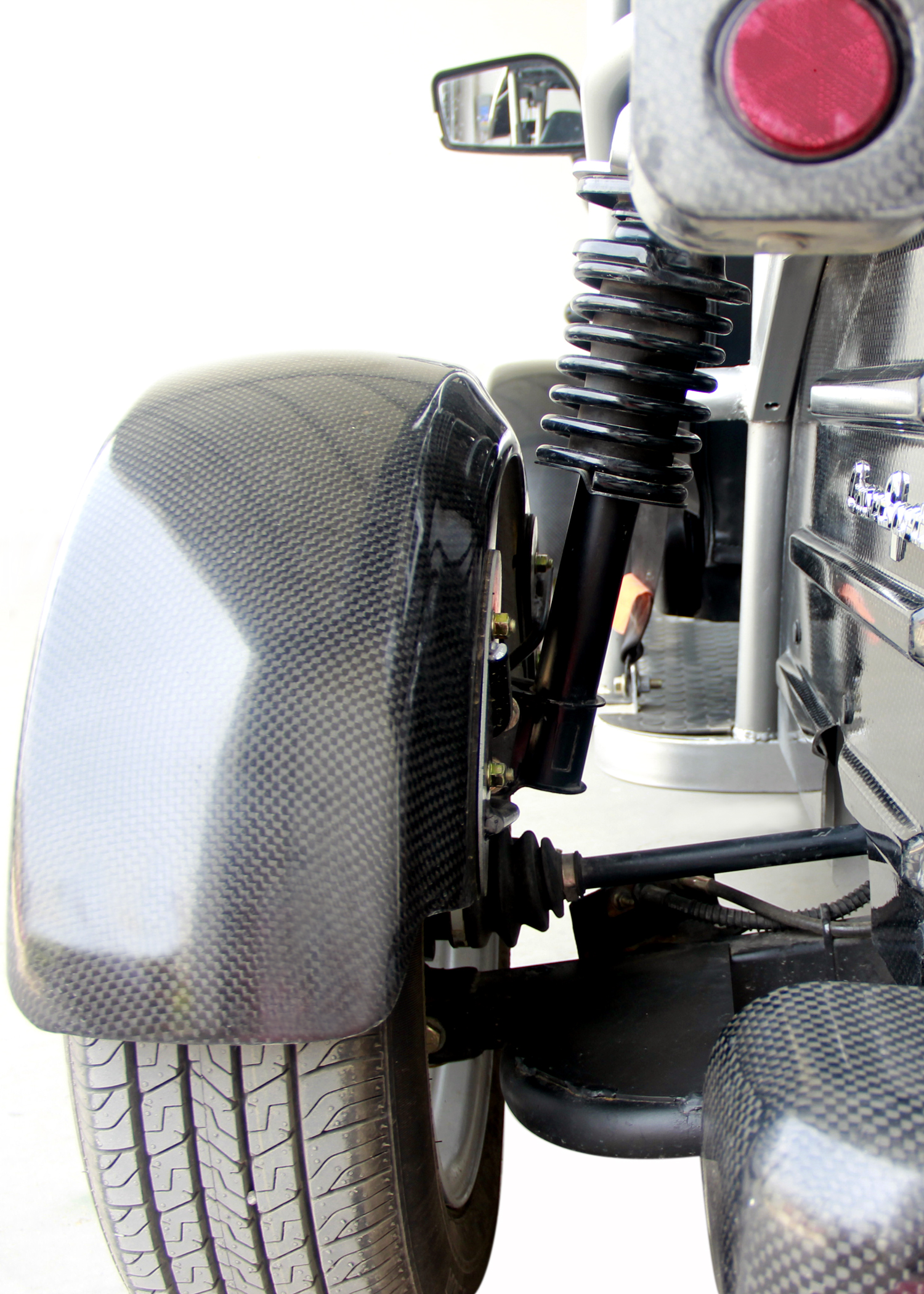

Suspension, front dual A arm
Suspension, rear swing arm
CVT transmission
Exterior
Carbon fiber or Fiber glass body
DOT approved safety glass for front and rear windshield
14" aluminum wheels
Side mirror turn signal lights
Removable T-Top
Interior
Audio system and interface
AM/FM, CD Player, USB port, and auxiliary input jack
4 speaker audio system
Premium bench seat
Seat adjusters
Convenience
Instrumentation, digital LCD screen
Charge cord, 120-volt, portable
Electric Power Steering (EPS) assist
Push button transmission
Rear trunk/storage
Glove box, passenger side
Safety
Safety belts
Dimension
Vehicle overall dimension: 2850*1650*1450mm
Wheel base: 1784mm
Tread (font/rear): 1420/1420mm
Ground clearance: 170mm
Min. turning circle radius: 4500mm
Capacity:
Max. speed: 65 km/h (5kW) or 45 km/h (3kW)
Max. driving distance: 65 km or 80 km
Max. climbing capacity: 30% or 20%
Axle load (front/rear): 255/455 kg
Vehicle overall weight: 580 kg or 710 kg
Charing time: 3.5 hours or 8 hours
Loading capacity: 200 kg
The application of Golf carts
Golf carts are generally a trouble-free means of getting around a
golf course, private community, worksite, or any other large area.
However, when a golf cart does not start or power up, this can
present a problem. Cart owners can perform some simple diagnostic
steps to determine if the problem is going to require a
professional technician, or if the fix might be an easy
do-it-yourself job.
Basic Troubleshooting Tools
To start troubleshooting a problem with a golf cart, a good set of
hand tools is the first requirement, and owners need a few specific
tools to check and test some of the cart's components. The
following chart lists the items that are helpful in the diagnostic
process.
Tool | Purpose |
| Digital multimeter | To test electrical components |
| Ratchet and sockets | To disassemble bolts on attachments for inspection or to access
hidden parts |
| Screwdriver | To tighten or loosen connections, clamps, and screws |
| Flashlight | To illuminate work area |
| Repair manual | To provide instruction on vehicle operation and repair procedures |
| Battery hydrometer | To check health of a lead acid battery |
Having a repair manual for the brand and model of golf cart is an
invaluable tool for the owner to troubleshoot some common concerns
with the vehicle, in addition to providing instructions for
disassembly and re-installation of specific components. If working
on the undercarriage of the golf cart, a floor jack can help raise
the vehicle for access to the steering, suspension, and drive-axle
components of the cart.
Packaging Details:
wooden case or fumigation-free wooden pallet floor sweeper machine
Each order will be packed carefully by our packing specialists who
professionally design packing solution for long distance
transportation.
