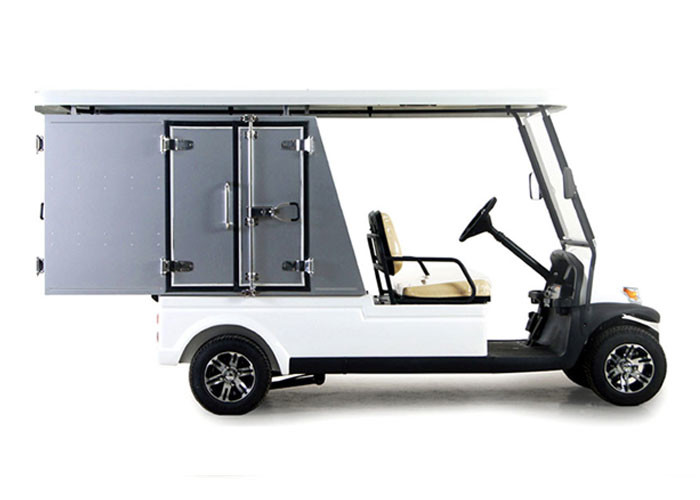

Aluminum Seal Type Electric Car Golf Cart Carryall with Custom
Utility Box
Specifications :
1)Power Selections:
a. Gasoline Engine 250cc,water cooled, 4-stroke
b. Electric motor 4KW/48VDC,Battery 8V/180AH x6
2)Transmission: CVT
3)Fuel Tank: 7L (gas only)
4)Max. range per full tank: 150km (gas only, electric 90km)
5)Starter: Electric ,Key starter
6)Ground clearance: 127mm
7)Max. forward speed: 20-50km/h (adjustable)
8)Max. Reverse speed: 15km/h
9)Climbing capability: <35 degrees
10)Turning radius: 5.75m
11)Tyre: 18x8.5-8
12) Seating capacity: 2persons
13) Vehicle load capacity : 600kgs
14) Optional Accessories :
- Sun canopy (Sunbrella canopy optional)
- Rearview mirror
- Left and right-turning light
- Headlight
- Brake light
- Horn
- Front Windshield
- CD player + Radio + Speakers (stereo)
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake with foot park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Aluminum differential cage, integrated, 12.76:1 gear ratio |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Option Accessories
(To increase the sales value of our vehicles, we also provide many
optional accessories.)
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 11 | Enclosure |
| 2 | Laminated windshield with wiper | 12 | Digital meter |
| 3 | 2-point seatbelt | 13 | 12V plug |
| 4 | Backrest cover in wood finish | 14 | Hour meter |
| 5 | Steering wheel in wood finish | 15 | Solar panel |
| 6 | Inner rear view mirror | 16 | Battery watering pipe |
| 7 | Side rear view mirror | 17 | Water pump (handle) |
| 8 | STS or aluminum roof supports | 18 | 4-wheel hydraulic front drum or disc, rear drum brake with hand
park brake |
| 9 | Wooden finish dashboard,steering wheel and dashboard | 19 | 8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10
tyre |
After-Sales Service
After got the complaint from the clients, first need got the
following information:
1. Photos, video and problems description (as more details as
better)
2. Checking the machine’s seal No., Engine No. and the date of
arrived. Asking the clients supply the working hour
3. If it is in the warranty, supply free parts according the
warranty policy; If not, supply necessary technical supply to help
client fix the problem and offer paid parts
4. Ask the part No. according the part catalogue when fixed the
problem and supply the parts
