11 Passenger Multi Passenger Golf Carts Sightseeing Car For Tourist Resort

Ask Lasest Price
Brand Name :	TOPCART
Model Number :	TG-11
Certification :	CE
Price :	3000-4500 USD PER UNIT
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	500 UNITS PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

11 Passenger Multi Passenger Golf Carts Sightseeing Car For Tourist Resort

Product Description

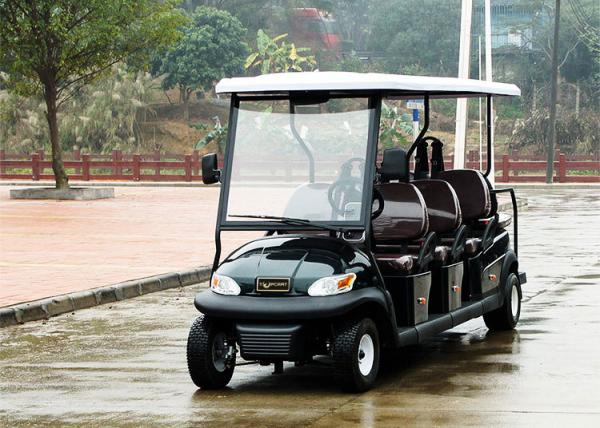

11 passengers electric sightseeing car for tourist resort

Product Description
System	DC system	AC system
Controller	Curtis controller 1266A-5301, 350A, imported from USA directly	Curtis controller 1234E-5321, 350A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 5kw
Battery	Trojan battery, T875,8V*6pcs, imported from USA directly	Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle	Italian GRAZIANO axle with gear ration 1:12	Italian GRAZIANO axle with gear ration 1:16
Charger	High Frequency onboard charger 48V/17A regulator	High Frequency onboard charger 48V/17A regulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	11	11
Climbing capacity(full load)	20%	25%
Max. forward speed	23km/h	45km/h
Endurance mileage	50-70km	60-80km
Charging time	8-10 hours	8-10 hours
Max. loading weight	510kgs	510kgs
Min. turning radius	5.1m	5.1m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item	Description
Overall dimensions (L x W x H)	4292x1219x1828mm
Ground clearance	114mm
Wheelbase	3300mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm

Body and Frame

Item	Description
Frame & Chassis	Steel alloy framework
Body	PP engineering plastic front and rear body cover, injected
Roof	Glass fiber reinforced plastic
Windshield	Organic glass (PMMA), one-piece or two pieces
Roof supports	Imbedding black coating steel tube in the plastic support
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light),
Horn	Electric horn, 48V
Reverse buzzer	Electric, 48V
Combination switch	Control the lights and horn
Digital Meter (optional)	Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering & suspersion

Item	Description
Steering System	Self-adjusting rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake
Accelerator	Holzer type, stepless speed change
Front suspension	Mcpherson independent spring suspension
Rear suspension	Coil spring hydraulic shock absorber
Driving model	Rear axle two stage deceleration, motor direct driving
Wheel & Tyre	Aluminum wheel & USA Carlisle 18*8.5-8 6 layers
