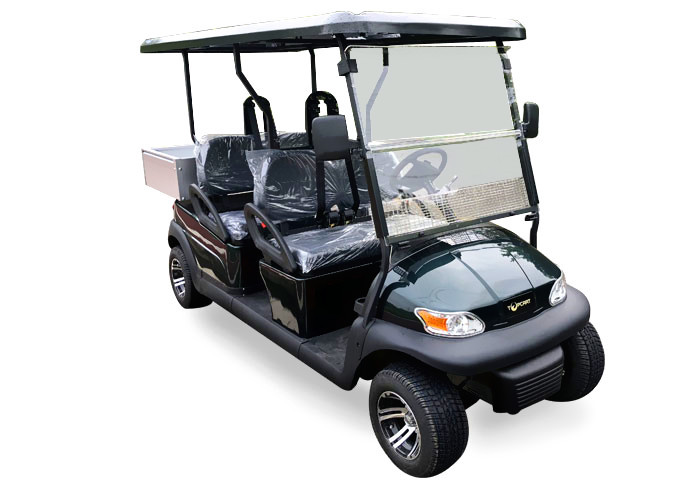

Electric Utility Golf Cart 4 Seats With Aluminum Box For Luggage
Performance
| Item | Description |
| system | DC system | AC system |
| Passenger Capacity | 4 | 4 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 100-120km | 100-120km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 500kgs | 500kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Advantage
1) based on the test conditions: 23km/h speed, flat and straight
concrete road, wind speed less than 5m/s, temperature of 25 Celsius
degree;
2) Range will vary depending on temperature, grade, payload and
driving style.
3)Four Seat Forward with fold down rear seat or rear cargo box
Power big enough to tackle the toughest jobs, coupled with
self-adjusting rack and pinion steering and dual drum brakes .
Versatile utility vehicles are perfect for everything from cruising
the beach with your family to hunting in the woods with your
buddies. Whether you choose the powerful 14 hp rated (10.4 kW)
rated Subaru EFI gas or a 13 hp (9.7 kW) peak rated electric
powertrain, it’s a great, affordable choice for work or play.
Basic Troubleshooting Tools
To start troubleshooting a problem with a golf cart, a good set of
hand tools is the first requirement, and owners need a few specific
tools to check and test some of the cart's components. The
following chart lists the items that are helpful in the diagnostic
process.
Tool | Purpose |
| Digital multimeter | To test electrical components |
| Ratchet and sockets | To disassemble bolts on attachments for inspection or to access
hidden parts |
| Screwdriver | To tighten or loosen connections, clamps, and screws |
| Flashlight | To illuminate work area |
| Repair manual | To provide instruction on vehicle operation and repair procedures |
| Battery hydrometer | To check health of a lead acid battery |
Having a repair manual for the brand and model of golf cart is an
invaluable tool for the owner to troubleshoot some common concerns
with the vehicle, in addition to providing instructions for
disassembly and re-installation of specific components. If working
on the undercarriage of the golf cart, a floor jack can help raise
the vehicle for access to the steering, suspension, and drive-axle
components of the cart.
Packaging Details:
wooden case or fumigation-free wooden pallet floor sweeper machine
Each order will be packed carefully by our packing specialists who
professionally design packing solution for long distance
transportation.
