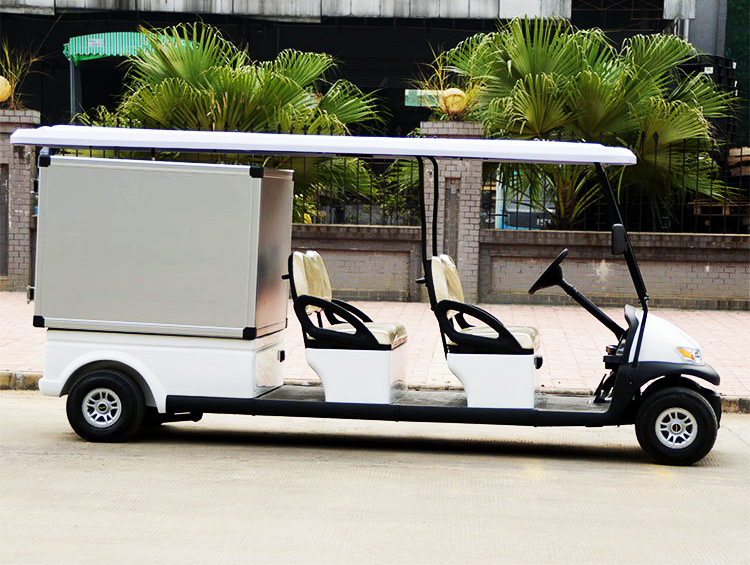

Cargo Carrier light duty electric van 2 Passenger with Reverse
Sensor High Speed
The parameters of Electric golf cart(4 seats)
| No | Item Product | Unit | Parameter |
| 1 | Passenger No. | person | 4 |
| 2 | Vacuum tire | — | 20.5X5.0-10 |
| 3 | Front/Rear wheel base | mm | 880/960 |
| 4 | Axles base | mm | 1605 |
| 5 | Mini ground clearance | mm | 120 |
| 6 | Max. drive speed | Km/h | ≥27 |
| 7 | Max. Travel mileage(full loading) | Km/h | ≥80 |
| 8 | Max. gradability (full loading) | % | 20 |
| 9 | Min. turning radius | m | 3 |
| 10 | Battery | V | 48 |
| 11 | Motor | KW | 4 |
| 12 | Input charge voltage | V | 220/110 |
| 13 | Charge time | h | 8-10 |
| 14 | Vehicle Weight | Kg | 450 |
| 15 | Vehicle Loading | Kg | 200 |
| | | |
The application of Golf carts
Golf carts are generally a trouble-free means of getting around a
golf course, private community, worksite, or any other large area.
However, when a golf cart does not start or power up, this can
present a problem. Cart owners can perform some simple diagnostic
steps to determine if the problem is going to require a
professional technician, or if the fix might be an easy
do-it-yourself job.
Basic Troubleshooting Tools
To start troubleshooting a problem with a golf cart, a good set of
hand tools is the first requirement, and owners need a few specific
tools to check and test some of the cart's components. The
following chart lists the items that are helpful in the diagnostic
process.
Tool | Purpose |
| Digital multimeter | To test electrical components |
| Ratchet and sockets | To disassemble bolts on attachments for inspection or to access
hidden parts |
| Screwdriver | To tighten or loosen connections, clamps, and screws |
| Flashlight | To illuminate work area |
| Repair manual | To provide instruction on vehicle operation and repair procedures |
| Battery hydrometer | To check health of a lead acid battery |
Having a repair manual for the brand and model of golf cart is an
invaluable tool for the owner to troubleshoot some common concerns
with the vehicle, in addition to providing instructions for
disassembly and re-installation of specific components. If working
on the undercarriage of the golf cart, a floor jack can help raise
the vehicle for access to the steering, suspension, and drive-axle
components of the cart.
Packaging Details:
wooden case or fumigation-free wooden pallet floor sweeper machine
Each order will be packed carefully by our packing specialists who
professionally design packing solution for long distance
transportation.
